Battery Manufacturing Facility

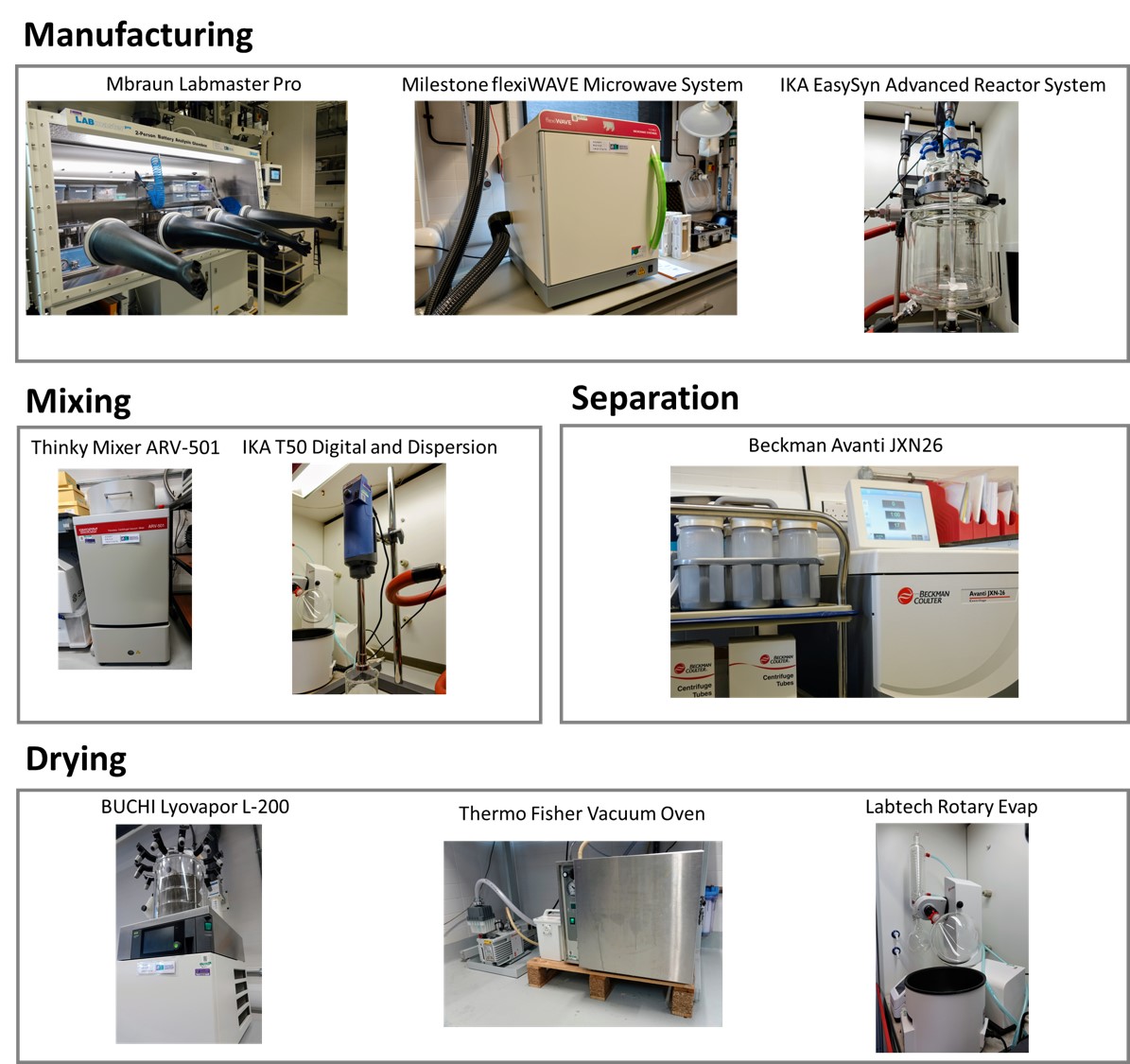

The Royce Battery Manufacturing Facility provides equipment for academic and commercial researchers to manufacture and process battery materials. This will bridge the gap between materials innovation and industrial collaboration. This comprehensive suite will accommodate a variety of materials and overcome difficult processing operations, including microwave manufacture, digestion, separation, drying, purifying, mixing, and washing.
Materials research for energy storage is a key component of the ‘Advanced Materials for a Sustainable Society’ vision of the Henry Royce Institute. To support the development of energy technologies that are safer, more efficient, and long lasting, we are integrating materials and accelerating their transition from early-stage discovery to impact. The suite allows researchers to investigate scalability of their materials and whether they can be safely processed. This provides a new capability to the energy materials community.
Please allow social and marketing cookies to show embedded content.
If your research interests require use of the battery suite or you have any questions on the suites capabilities and would like to discuss your experimental needs, contact Facility Manager Dr. Jung-In Lee (jil29@cam.ac.uk) in the Department of Materials Science and Metallurgy.
Mbraun Labmaster Pro
The glove box helps users to handle their sensitive samples under inert atmosphere.
Description:
2-user, O2 and H2O < 0.5ppm
Closed loop circulation
Working gas: Ar
Negative and positive pressure operation
Uses: Loading, handling, unloading air sensitive cells.
Milestone flexiWAVE Microwave System
The flexible microwave system allows users to synthesis and digest difficult reaction chemistries.
Description:
70L cavity, 1900W, IR sensor, camera, magnetic stirrer, exhaust system
High-pressure (1.5L, 100 bar, 300°C)
Classic glassware (0.5L, condenser)
Solid-phase (2.5L, rotating)
Uses: Digestion of electrodes, synthesis, functionalisation, coating, dehydration.
IKA EasySyn Advanced Reactor System
The reactor system is typically used for organic or aqueous synthesis.
Description:
5L double jacket, -50 to 200°C
Overhead EUROSTAR stirrer, PTFE-coated propeller
Drainage set, bottom discharge valve
Vacuum operation to 3 mbar
Uses: Synthesis, mixing, co-precipitation, filtration.
Thinky Mixer ARV-501
The planetary mixer can mix, disperse and degas your materials, in a sealed or lidless container
Description:
Maximum 700 g, 550ml capacity
Adapters down to 1g, 10ml capacity
Mixing mode; revolution 1500 rpm, rotation 867 rpm
Defoaming mode; 2000 rpm, rotation 60 rpm (attainable vacuum 0.60 kPa)
Uses: Slurry formulations and homogeneous mixing
IKA T50 digital and dispersion
The overhead stirrer can go up to 30 litres of mixture, and up to 10,000 RPM in speed.
Description:
Volume range: 0.5 – 30 L
Speed range: 600 – 10,000 rpm
Max viscosity: 5000 mPas
Dispersion element (S 50 KG HH G 45 M), H Stand
Uses: Dispersions and mixing
Beckman Avanti JXN26
The centrifuge has a maximum capacity of 6 litres and 26 thousand RPM, 82 thousand g.
Description:
Maximum capacity of 6.0L, 26,000 rpm, 82,000 x g
Temperature -10°C to +40°C
JA-25.50 Fixed-Angle Rotor, 8 x 50 mL, 25,000 rpm, 75,600 x g
J-LITE JLA-8.1000 Fixed-Angle Rotor- 6 x 1,000 mL, 8,000 rpm, 15,970 x g
Uses: Liquid-solid separation and sample processing at temperature control.
BUCHI Lyovapor L-200
This freeze dryer allows users to dry samples through lyophilisation.
Description:
6kg capacity, -55°C
3 heated shelves (60°C)
Attainable vacuum 0.04 mbar
Drying chamber or 12-port manifold connection
Uses: Drying samples before slurry or electrode fabrication, self-assembly of composites.
Thermo Fisher Vacuum Oven
The Vacuum oven dries samples at temperature and under inert gas.
Description:
65L
Jacket heating; 220°C
Attainable vacuum 3.5 mbar
Purge needle valves
Stainless steel, aluminium shelves
Uses: Drying coated or slurry formulations but can be used for curing, vacuum embedding, and plating.
Labtech Rotary Evaporator
The rotary evaporator assists with drying of more solvent heavy samples, or purification.
Description:
20 - 300 RPM, 180°C
Evaporation flask 3L, receiving flask 1L
Recirculating chiller, vacuum controller (1 mbar)
Uses: Removal of selective solvents from your samples by evaporation.
